6. 스택(Stack)

1. 스택의 이해와 ADT 정의



∙ 스택은 ‘먼저 들어간 것이 나중에 나오는 자료구조’ 로서 초코볼이 담겨있는 통에 비유할 수 있다.

∙ 스택은 ‘LIFO(Last-in, First-out) 구조’의 자료구조이다.



▣ 스택의 기본 연산

∙ 통에 초코볼을 넣는다.                                                       push
∙ 통에서 초코볼을 꺼낸다.                                                    pop
∙ 이번에 꺼낼 초코볼의 색이 무엇인지 통 안을 들여다 본다.         peek

※ 일반적인 자료구조의 학습에서 스택의 이해와 구현은 어렵지 않다.  오히려 활용의 측면에 서 생각할 것들이 많다!

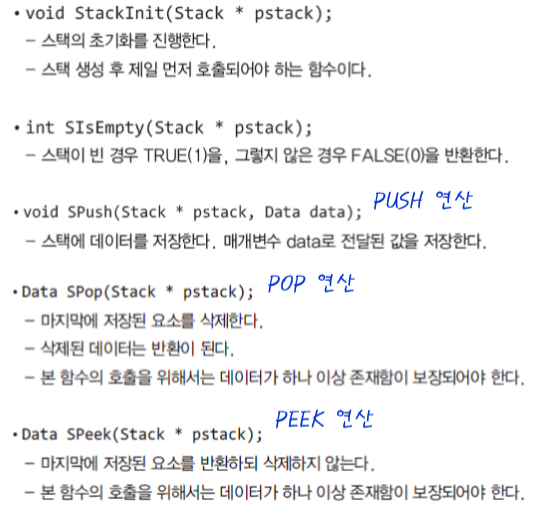

ADT



※  ADT를 대상으로 배열 기반의 스택 또는 연결 리스트 기반의 스택을 구현할 수 있다

---

2. 스택의 배열 기반 구현

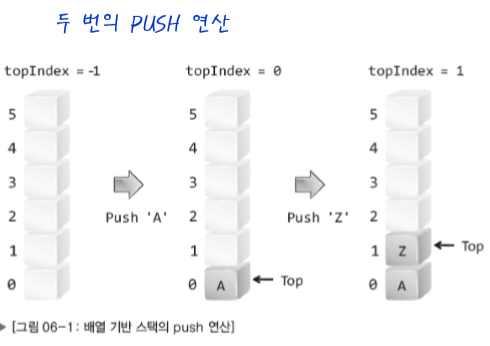

∙ 인덱스 0의 배열 요소가 '스택의 바닥(초코볼 통의 바닥)'으로 정의되었다.
∙ 마지막에 저장된 데이터의 위치를 기억해야 한다.

∙ push : Top을 위로 한 칸 올리고, Top이 가리키는 위치에 데이터 저장

∙ pop  : Top이 가리키는 데이터를 반환하고, Top을 아래로 한 칸 내림



void Stackinit(Stack* pstack)
{
	pstack->topIndex = -1; // 비어있음
}

int IsEmpty(Stack* pstack)
{
	if (pstack->topIndex == -1)return true;
	else
		return false;
}

void SPush(Stack* pstack, Data data)
{
	pstack->topIndex += 1;
	pstack->stackArr[pstack->topIndex] = data;

}

//빼는게 아니라, topIndex를 줄여가면서 -1이 될떄까지 읽는다
Data SPop(Stack* pstack)
{
	int rIdx;
	if (IsEmpty(pstack))
	{
		cout << "Stack NULL " << endl;
	}

	rIdx = pstack->topIndex;
	pstack->topIndex -= 1;

	return pstack->stackArr[rIdx];  //
}

Data SPeek(Stack* pstack)
{
	if (IsEmpty(pstack))
	{
		cout << "Stack NULL " << endl;
	}
	return pstack->stackArr[pstack->topIndex];
}

int main()
{

	Stack stack;
	Stackinit(&stack);

	SPush(&stack,1);
	SPush(&stack, 2);
	SPush(&stack, 3);
	SPush(&stack, 4);
	SPush(&stack, 5);

	while (!IsEmpty(&stack))
		cout <<  SPop(&stack) << endl;


	return 0;
}





---

3. 스택의 연결 리스트 기반 구현



저장된 순서의 역순으로 데이터(노드)를 참조(삭제) 하는 연결 리스트가 바로 연결 기반의 스택이다

typedef struct _node
{
	Data data;
	struct _node* next;
}Node;

typedef struct _listStack
{
	Node* head;

}ListStack;

typedef ListStack Stack;


void Stackinit(Stack* pstack)
{
	pstack->head = NULL; // 비어있음
}

int IsEmpty(Stack* pstack)
{
	if (pstack->head == NULL)return true;
	else
		return false;
}

void SPush(Stack* pstack, Data data)
{
	Node* newNode = new Node();

	newNode->data = data;
	newNode->next = pstack->head;

	pstack->head = newNode;
}

Data SPop(Stack* pstack)
{
	Data rdata;
	Node* rnode;

	if (IsEmpty(pstack))
	{
		cout << NULL << endl;
	}

	rdata = pstack->head->data;
	rnode = pstack->head;

	pstack->head = pstack->head->next;
	delete rnode;

}

Data SPeek(Stack* pstack)
{
	if (IsEmpty(pstack))
	{
		cout << "Stack NULL " << endl;
	}

	return pstack->head->data;
}

int main()
{

	Stack stack;
	Stackinit(&stack);

	SPush(&stack,1);
	SPush(&stack, 2);
	SPush(&stack, 3);
	SPush(&stack, 4);
	SPush(&stack, 5);

	while (!IsEmpty(&stack))
		cout <<  SPop(&stack) << endl;


	return 0;
}
