0. CreateDevice 2

1. Device
2. Window
3. Sample

//TDevice.h
#pragma once
#include <assert.h>
#include <tchar.h>
#include <d3d11.h>
#include <dxerr.h>

#pragma comment		(lib, "dxgi.lib")
#pragma comment		(lib, "d3d11.lib")
#pragma comment		(lib, "dxerr.lib")
#pragma comment		(lib, "legacy_stdio_definitions.lib")

class TDevice
{
public:
	//--------------------------------------------------------------------------------------
	// Global Variables
	//--------------------------------------------------------------------------------------
	ID3D11Device*           m_pd3dDevice;		// 디바이스 객체
	IDXGISwapChain*         m_pSwapChain;		// 스왑체인 객체
	ID3D11RenderTargetView* m_pRenderTargetView;// 메인 랜더타켓 뷰
	D3D11_VIEWPORT			m_ViewPort;			// 뷰포트
	D3D_DRIVER_TYPE         m_driverType;		// 디바이스 타입( 디폴트:하드웨어 가속 )
	IDXGIFactory*			m_pGIFactory;		// DXGI 객체
	ID3D11DeviceContext*    m_pImmediateContext;// 디바이스 컨텍스트
	D3D_DRIVER_TYPE			m_DriverType;		// 디바이스 타입
	D3D_FEATURE_LEVEL       m_FeatureLevel;		// DirectX의 기능수준

public:
	//--------------------------------------------------------------------------------------
	// 디바이스 및 스왑체인 생성 :
	// 1, CreateDevice()
	// 2, CreateGIFactory()
	// 3, CreateSwapChain()
	// 4, SetRenderTargetView()
	// 5, SetViewPort()
	//--------------------------------------------------------------------------------------
	HRESULT		CreateDevice();
	HRESULT		CreateGIFactory();
	HRESULT		CreateSwapChain(HWND hWnd, UINT iWidth, UINT iHeigh);
	//--------------------------------------------------------------------------------------
	//
	//--------------------------------------------------------------------------------------
	HRESULT		SetRenderTargetView();
	HRESULT		SetViewPort();
	bool		CleanupDevice();

public:
	TDevice(void);
	virtual ~TDevice(void);
};

/////////////////////////////////////////////
//TDevice.cpp
#include "TDevice.h"

//--------------------------------------------------------------------------------------
// ID3D11Device 인터페이스를 생성한다.
//--------------------------------------------------------------------------------------
HRESULT TDevice::CreateDevice()
{
	HRESULT hr;

	UINT createDeviceFlags = 0;
#ifdef _DEBUG
    createDeviceFlags |= D3D11_CREATE_DEVICE_DEBUG;
#endif

	D3D_DRIVER_TYPE driverTypes[] =
    {
		D3D_DRIVER_TYPE_UNKNOWN,
        D3D_DRIVER_TYPE_HARDWARE,
        D3D_DRIVER_TYPE_WARP,
        D3D_DRIVER_TYPE_REFERENCE,
    };
    UINT numDriverTypes = sizeof( driverTypes ) / sizeof( driverTypes[0] );
	D3D_FEATURE_LEVEL featureLevels[] =
    {
        D3D_FEATURE_LEVEL_11_0,
        D3D_FEATURE_LEVEL_10_1,
        D3D_FEATURE_LEVEL_10_0,
		D3D_FEATURE_LEVEL_9_3,
    };
	UINT numFeatureLevels = sizeof( featureLevels ) / sizeof( featureLevels[0] );

	//IDXGIAdapter* pAdapter = NULL;
	//m_pGIFactory->EnumAdapters( 0, &pAdapter );

	for( UINT driverTypeIndex = 0; driverTypeIndex < numDriverTypes; driverTypeIndex++ )
    {
		m_DriverType = driverTypes[driverTypeIndex];
        if( SUCCEEDED( hr = D3D11CreateDevice(	NULL, m_DriverType, NULL, createDeviceFlags,
												featureLevels, numFeatureLevels,
												D3D11_SDK_VERSION, &m_pd3dDevice, &m_FeatureLevel, &m_pImmediateContext ) ))
		{
			if( FAILED( hr ) || m_FeatureLevel < D3D_FEATURE_LEVEL_11_0)
			{
				if( m_pImmediateContext ) m_pImmediateContext->Release();
				if( m_pd3dDevice ) m_pd3dDevice->Release();
				continue;
			}
			break;
		}

    }
	//if( pAdapter ) pAdapter->Release();

    if( FAILED( hr ) )
	{
		//DXTRACE_ERR_MSGBOX(DXGetErrorDescription(hr), hr);
		return false;
	}
	DXTRACE_MSG(DXGetErrorDescription(hr));
	return S_OK;
}
//--------------------------------------------------------------------------------------
// DXGIFactory 인터페이스를 생성한다.
//--------------------------------------------------------------------------------------
HRESULT TDevice::CreateGIFactory()
{
	HRESULT hr;
	if( FAILED( hr = CreateDXGIFactory(__uuidof(IDXGIFactory), (void**)(&m_pGIFactory) ) ))
	{
		//DXTRACE_ERR_MSGBOX( DXGetErrorDescription(hr), hr );
		//MessageBox( m_hWnd, DXGetErrorDescription(hr), DXGetErrorString(hr), MB_OK );
		return false;
	}
	return hr;
}
//--------------------------------------------------------------------------------------
// DXGIFactory 인터페이스로부터 IDXGISwapChain 인터페이스를 생성한다.
//--------------------------------------------------------------------------------------
HRESULT TDevice::CreateSwapChain( HWND hWnd, UINT iWidth, UINT iHeight)
{
	HRESULT hr = S_OK;
	if( m_pGIFactory == NULL ) return S_FALSE;
	DXGI_SWAP_CHAIN_DESC sd;
    ZeroMemory( &sd, sizeof( sd ) );
    sd.BufferCount = 1;
    sd.BufferDesc.Width		= iWidth;
    sd.BufferDesc.Height	= iHeight;
    sd.BufferDesc.Format	= DXGI_FORMAT_R8G8B8A8_UNORM;
    sd.BufferDesc.RefreshRate.Numerator = 60;
    sd.BufferDesc.RefreshRate.Denominator = 1;
    sd.BufferUsage = DXGI_USAGE_RENDER_TARGET_OUTPUT;
    sd.OutputWindow = hWnd;
    sd.SampleDesc.Count = 1;
    sd.SampleDesc.Quality = 0;
    sd.Windowed = true;
	sd.Flags	= DXGI_SWAP_CHAIN_FLAG_ALLOW_MODE_SWITCH;

	if( FAILED( hr = m_pGIFactory->CreateSwapChain( m_pd3dDevice, &sd, &m_pSwapChain ) ))
	{
		return hr;
	}
	return hr;
}
HRESULT TDevice::SetRenderTargetView()
{
	HRESULT hr = S_OK;
	 // Create a render target view
    ID3D11Texture2D* pBackBuffer;
    hr = m_pSwapChain->GetBuffer( 0, __uuidof( ID3D11Texture2D ), ( LPVOID* )&pBackBuffer );
    if( FAILED( hr ) )
        return hr;

    hr = m_pd3dDevice->CreateRenderTargetView( pBackBuffer, NULL, &m_pRenderTargetView );
    pBackBuffer->Release();
    if( FAILED( hr ) )
        return hr;

    m_pImmediateContext->OMSetRenderTargets( 1, &m_pRenderTargetView, NULL );
	return S_OK;
}

HRESULT TDevice::SetViewPort()
{
	HRESULT hr = S_OK;
	DXGI_SWAP_CHAIN_DESC Desc;
	m_pSwapChain->GetDesc( &Desc );
	// Setup the viewport
    m_ViewPort.Width	= Desc.BufferDesc.Width;
    m_ViewPort.Height	= Desc.BufferDesc.Height;
    m_ViewPort.MinDepth = 0.0f;
    m_ViewPort.MaxDepth = 1.0f;
    m_ViewPort.TopLeftX = 0;
    m_ViewPort.TopLeftY = 0;
	m_pImmediateContext->RSSetViewports( 1, &m_ViewPort );
	return S_OK;
}
bool TDevice::CleanupDevice()
{
    if( m_pImmediateContext ) m_pImmediateContext->ClearState();
    if( m_pRenderTargetView ) m_pRenderTargetView->Release();
    if( m_pSwapChain ) m_pSwapChain->Release();
	if( m_pImmediateContext ) m_pImmediateContext->Release();
    if( m_pd3dDevice ) m_pd3dDevice->Release();
	if( m_pGIFactory ) m_pGIFactory->Release();
	m_pd3dDevice		= NULL;
	m_pSwapChain		= NULL;
	m_pRenderTargetView = NULL;
	m_pImmediateContext = NULL;
	m_pGIFactory		= NULL;
	return true;
}
TDevice::TDevice(void)
{
	m_driverType		= D3D_DRIVER_TYPE_NULL;
	m_FeatureLevel		= D3D_FEATURE_LEVEL_11_0;
	m_pd3dDevice		= NULL;
	m_pSwapChain		= NULL;
	m_pRenderTargetView = NULL;
	m_pImmediateContext = NULL;
}

TDevice::~TDevice(void)
{
}



---

//TWindow.h
#pragma once
#include "TDevice.h"

class TWindow : public TDevice
{
public:
	//--------------------------------------------------------------------------------------
	// Global Variables
	//--------------------------------------------------------------------------------------
	HINSTANCE               m_hInstance;		// 인스턴스 핸들
	HWND                    m_hWnd;				// 윈도우 핸들
	DWORD					m_dwWindowStyle;	// 윈도우 스타일
	RECT					m_rcWindowBounds;   // 윈도우 영역
	RECT					m_rcWindowClient;   // 클라이언트 영역
	UINT					m_iWindowWidth;		// 클라이언트 영역 가로크기
	UINT					m_iWindowHeight;	// 을라이언트 영역 세로크기
public:
	// 윈도우 생성
	bool				InitWindow( HINSTANCE hInstance, int nCmdShow, TCHAR* strWindowTitle );
	// 윈도우 위치 화면 중앙으로 이동
	void				CenterWindow(HWND hwnd);

public:
	virtual bool		Init();
	virtual	bool		Frame();
	virtual	bool		Render();
	virtual bool		Release();
	virtual	bool		Run();
	virtual LRESULT		WndProc( HWND, UINT, WPARAM, LPARAM );
public:
	TWindow(void);
	virtual ~TWindow(void);
};


//TWindow.cpp
#include "TWindow.h"

TWindow* g_pWindow = NULL;
//--------------------------------------------------------------------------------------
// 메인 윈도우 프로시져
//--------------------------------------------------------------------------------------
LRESULT CALLBACK StaticWndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam )
{
	assert( g_pWindow );
    return g_pWindow->WndProc(hWnd, message, wParam, lParam);
}

//--------------------------------------------------------------------------------------
// 윈도우 프로시져
//--------------------------------------------------------------------------------------
LRESULT TWindow::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam )
{
    PAINTSTRUCT ps;
    HDC hdc;

    switch( message )
    {
        case WM_DESTROY:
            PostQuitMessage( 0 );
            break;
    }
    return DefWindowProc( hWnd, message, wParam, lParam );
}
void TWindow::CenterWindow(HWND hwnd)
{
	// 화면 스크린의 해상도(넓이와 높이)을 얻는다.
	int iScreenWidth = GetSystemMetrics(SM_CXFULLSCREEN);
	int iScreenHeight= GetSystemMetrics(SM_CYFULLSCREEN);

	// 윈도우 클라이언트 중앙과 화면 스크린 중앙을 맞춘다.
	int iDestX = (iScreenWidth-(m_rcWindowBounds.right-m_rcWindowBounds.left)) / 2;
	int iDestY = (iScreenHeight-(m_rcWindowBounds.bottom-m_rcWindowBounds.top)) / 2;

	// 윈도우를 화면중앙으로 이동시킨다.
	MoveWindow( hwnd, iDestX, iDestY,
				m_rcWindowBounds.right	-m_rcWindowBounds.left,
				m_rcWindowBounds.bottom	-m_rcWindowBounds.top,
				true);
}
bool TWindow::InitWindow(HINSTANCE hInstance, int nCmdShow, TCHAR* strWindowTitle)
{
	  // Register class
    WNDCLASSEX wcex;
    wcex.cbSize = sizeof( WNDCLASSEX );
    wcex.style = CS_HREDRAW | CS_VREDRAW;
    wcex.lpfnWndProc = &StaticWndProc;
    wcex.cbClsExtra = 0;
    wcex.cbWndExtra = 0;
    wcex.hInstance = hInstance;
    wcex.hIcon = LoadIcon(NULL, MAKEINTRESOURCE(IDI_APPLICATION));
    wcex.hCursor = LoadCursor( NULL, IDC_ARROW );
    wcex.hbrBackground = ( HBRUSH )( COLOR_WINDOW + 1 );
    wcex.lpszMenuName = NULL;
    wcex.lpszClassName = L"TBasis3D11_Sample";
    wcex.hIconSm = LoadIcon( wcex.hInstance,MAKEINTRESOURCE(IDI_APPLICATION) );
    if( !RegisterClassEx( &wcex ) )
        return false;

    // Create window
    m_hInstance = hInstance;
    RECT rc = { 0, 0, 800, 600 };
	// 작업영역(  타이틀 바/경계선/메뉴/스크롤 바 등의 영역을 제외한 영역), 윈도우 스타일, 메뉴여부
    AdjustWindowRect( &rc, WS_OVERLAPPEDWINDOW, FALSE );
    m_hWnd = CreateWindow( L"TBasis3D11_Sample",strWindowTitle, WS_OVERLAPPEDWINDOW,
                           CW_USEDEFAULT, CW_USEDEFAULT, rc.right - rc.left, rc.bottom - rc.top, NULL, NULL, hInstance,
                           NULL );
    if( !m_hWnd )
        return false;


	// 윈도우 스타일을 저장하고 스크린 영역과 클라이언트 영역을 얻는다.
	m_dwWindowStyle = GetWindowLong( m_hWnd, GWL_STYLE );
	GetWindowRect( m_hWnd, &m_rcWindowBounds );
	GetClientRect( m_hWnd, &m_rcWindowClient );

	CenterWindow(m_hWnd);
	UpdateWindow(m_hWnd);

	// 윈도우 클라이언트 넓이와 높이를 얻는다.
	m_iWindowWidth		= 	m_rcWindowClient.right - m_rcWindowClient.left;
	m_iWindowHeight		=	m_rcWindowClient.bottom-m_rcWindowClient.top;

    ShowWindow( m_hWnd, nCmdShow );
	return true;
}
bool TWindow::Init()
{
	return true;
}
bool TWindow::Frame()
{
	return true;
}
bool TWindow::Render()
{
	return true;
}
bool TWindow::Release()
{
	return true;
}
bool TWindow::Run()
{
	if( !Init() ) return false;
	// Main message loop
    MSG msg = {0};
    while( WM_QUIT != msg.message )
    {
        if( PeekMessage( &msg, NULL, 0, 0, PM_REMOVE ) )
        {
            TranslateMessage( &msg );
            DispatchMessage( &msg );
        }
        else
        {
            if( !Frame() ||  !Render() )
			{
				break;
			}
        }
    }
	if( !Release() ) return false;
	return true;
}
TWindow::TWindow(void)
{
	m_hInstance			= NULL;
	m_hWnd				= NULL;
	g_pWindow			= this;
}

TWindow::~TWindow(void)
{
}

---



//Sample.h
#pragma once
#include "TWindow.h"

class Sample : public TWindow
{
public:
	bool		Init();
	bool		Render();
	bool		Release();
public:
	Sample(void);
	~Sample(void);
};


//Sample.cpp
//내용들은 Device로 이동하여, Sample 함수 내용물을 비워서 기본구조로 사용
bool Sample::Init()
{
	HRESULT hr;
	if( FAILED( hr = CreateGIFactory() ))
	{
		DXTRACE_MSG( DXGetErrorDescription(hr), hr );
		return false;
	}
	if( FAILED( hr = CreateDevice() ))
	{
		DXTRACE_MSG( DXGetErrorDescription(hr), hr );
		return false;
	}
	if( FAILED( hr = CreateSwapChain(m_hWnd,this->m_iWindowWidth, this->m_iWindowHeight) ) )
	{
		DXTRACE_MSG( DXGetErrorDescription(hr), hr );
		return false;
	}

	if( FAILED( hr = SetRenderTargetView() ) )
	{
		DXTRACE_MSG( DXGetErrorDescription(hr), hr );
		return false;
	}
	if( FAILED( hr = SetViewPort() ) )
	{
		DXTRACE_MSG( DXGetErrorDescription(hr), hr );
		return false;
	}
	return true;
}
bool Sample::Render()
{
	DXGI_SWAP_CHAIN_DESC CurrentSD;
	m_pSwapChain->GetDesc( &CurrentSD );
	GetClientRect( m_hWnd, &m_rcWindowClient );

	float ClearColor[4] = { 0.0f, 0.125f, 0.3f, 1.0f }; //red,green,blue,alpha
	m_pImmediateContext->ClearRenderTargetView( m_pRenderTargetView, ClearColor );

	m_pSwapChain->Present( 0, 0 );
	return true;
}
bool Sample::Release()
{
	if( !CleanupDevice() ) return false;
	return true;
}
Sample::Sample(void)
{
}

Sample::~Sample(void)
{
}

int WINAPI wWinMain( HINSTANCE hInstance, HINSTANCE hPrevInstance, LPWSTR lpCmdLine, int nCmdShow )
{
	Sample gSample;
	if( !gSample.InitWindow( hInstance, nCmdShow,  L"CreateDevice_1" ) )
	{
		MessageBox( 0, _T("Sample  초기화 실패"), _T("Fatal error"), MB_OK );
		return 0;
	}
	ShowCursor ( TRUE );
	gSample.Run();
	return 1;
}



---

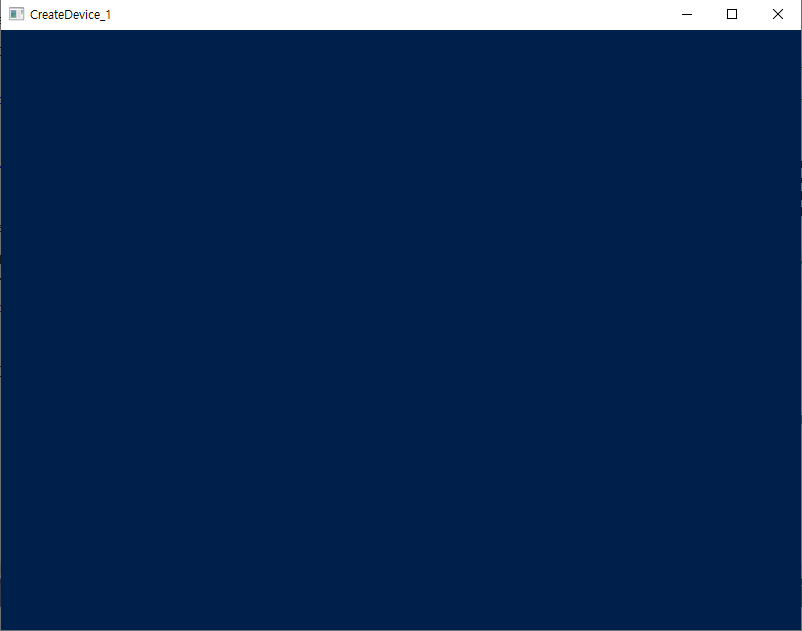

실행 화면
